Grantry Sawmill

Short Description:

Application : Our Gantry sawmill use for the log cutting(oak, teak ,pine ,rosewood etc). Main advantage Is high precision, small saw kert. compare with the tradition vertical band saw. It can save 4-5mm material after cutting the wood. Also can directly sanding after drying, no need to use the moulder. For the worker operation, also will be more safe. Advantage : 1. Machine Lathe : use 10mm thick plate massiveness square tube welding and heat treatment 2. Lifting system : we use the Taiwan A...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Application :

    Our Gantry sawmill use for the log cutting(oak, teak ,pine ,rosewood etc). Main advantage Is high precision, small saw kert. compare with the tradition vertical band saw. It can save 4-5mm material after cutting the wood. Also can directly sanding after drying, no need to use the moulder. For the worker operation, also will be more safe.

    saw mill

    Advantage :

    1. Machine Lathe : use 10mm thick plate massiveness square tube welding and heat treatment

    2. Lifting system : we use the Taiwan ABBA high precision lead screw and the Germany Rexroth sliding block

    3. Saw wheel : we produce by ourselves instead of outsourcing, use high hardness rolled steel and

    go through ten steps process (laser cutting, heat-treatment etc.)

    4. Heavy bearing device : saw wheel use NSK heavy release bearing

    5.Saw wheel tension oriented : use Germany Rexroth guide strip slide

    6. Control panel : use the Delta controller and Siemens button

    7.Electric device : use Delta PLC , Siemens/Schneider contactor/ thermorelay

    8. Guide rail: use Germany Rexroth45# heavy guide rail, single sliding block can bear 5 tons weight

    Model Details :

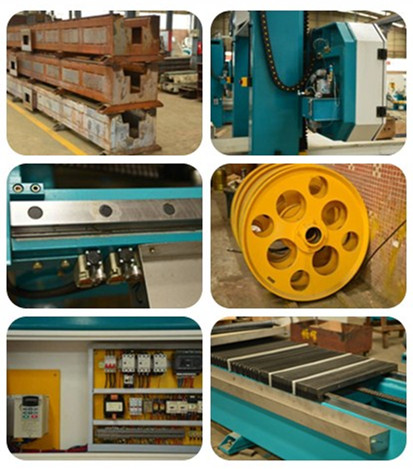

    grantry sawmill details

    Machine Main Parts Brand

    Transformer       JUCHE
    Button switch   Siemens
    Shutdown switch   Schneider
    a.c. contactor  Schneider
    Bearing   NSK
    Transducer  Delta
    Guide strip slide  Rexroth
    Ball screw  TBI/ABBA
    Text display   Delta
    Travel switch   TEND
    PLC controller  Delta

    Parameter

    Model NO. KC3185X1300  KC3180X900 KC3180X650    KC3171X450
    Max.working size(L×W×H) 4000×1300×1300mm 4000×900×900mm 4000×650×650mm 2500×450×450mm
    Table size(L×W) 4000×1000mm 3500×700mm 3500×700mm 2500×400mm
    Clamp fittings 4 4 4 3
    Worktable infeed speed 0.3–8.7m/min 0.3–8.7m/min 0.3-8.7m/min 0.3-8.7m/min
    Worktable infeed motor 3.7KW 1.5KW 1.5kw 1.5kw
    Diameter of saw wheel 850mm 800mm 710mm 710mm
    Saw blade speed 31m/s 31m/s 31m/s 31m/s
    Size of saw blade(L×W×H) 7600×60×1.1mm 6000×50×1.1mm 6000×41×1.1mm 5182×41×1.1mm
    Saw kerf 1.4~2.0mm 1.4~2.0mm 1.4~2.0mm 1.4~2.0mm
    Saw wheel motor 22kw 22kw 22kw 18.5kw
    Saw wheel elevation motor 0.75kw 0.75kw 0.37kw 0.37kw
    Distance from saw blade to worktable 20~1300mm 20~900mm 20~650mm 20~450mm
    Blade tension pressure 100kg/cm2 80kg/cm2 55kg/cm2 55kg/cm2
    Orerall dimensions(L×W×H) 9000×3300×3500mm 9000×2660×3000mm 9000×2660×2800MM 5500×2250×2800MM
    Net weight 8000kg 5800kg 5200kg 3000kg

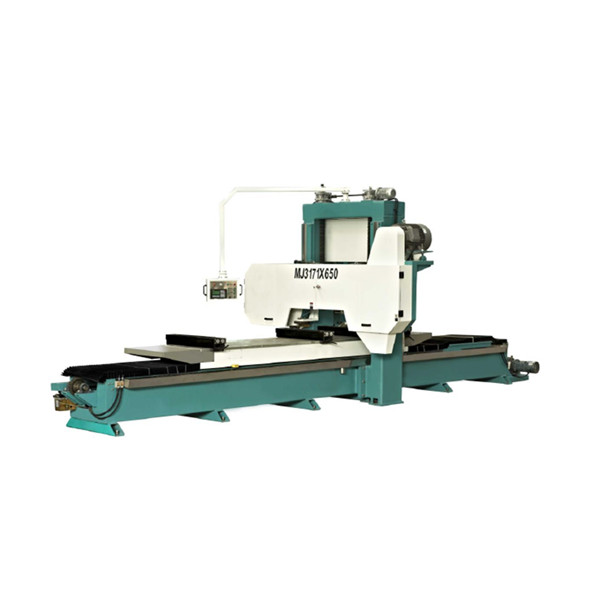

    Our Workshop

    our workshop

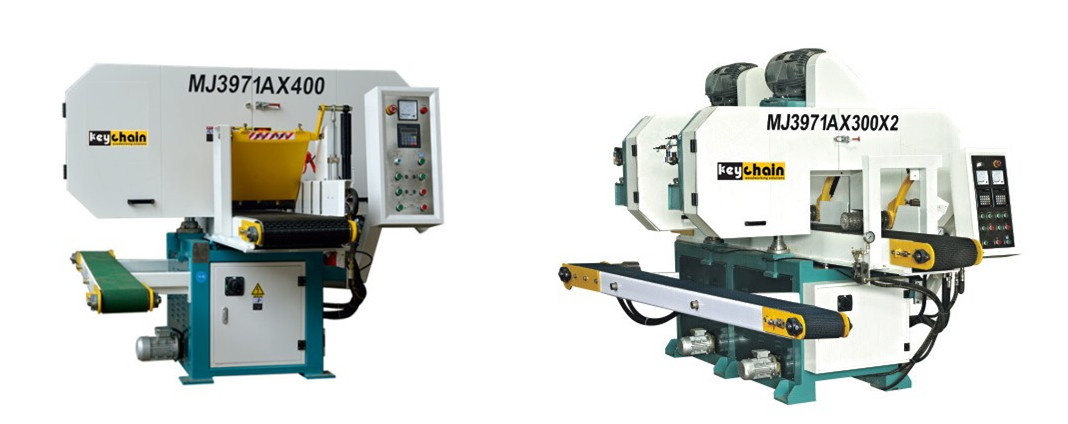

    Series Models – Horzontal band saw (single head and double heads)

    band saw series models

    For more details, pls feel free to contact us
