M623 High Speed Four Side Moulder

Short Description:

Application Our four side planer with different working width 120mm, 160mm, 200mm, 230mm , and with different spindles ( four, five, six ) for different workpiece demand . Which is a good professional solutions for wooden floors, door frames, stairs handrail, skirting line, various wooden lines and the big cutting quantity processing Model Features 1.Inverter feed speed of 6-30m/min (Optional feed speed 9-45m/min) 2.Individual motor to each spindle to ensure maximum power transmission 3.Hig...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Application

    Our four side planer with different working width 120mm, 160mm, 200mm, 230mm , and with different spindles ( four, five, six ) for different workpiece demand . Which is a good professional solutions for wooden floors, door frames, stairs handrail, skirting line, various wooden lines and the big cutting quantity processing

    four side planer application

    Model Features

    1.Inverter feed speed of 6-30m/min (Optional feed speed 9-45m/min)

    2.Individual motor to each spindle to ensure maximum power transmission

    3.High precision spindle units with two pairs of high precision bearing each end of assembly

    4.All main spindle adjustments are carried out from outside the enclosure

    5.Electroplating worktable, good wear resistance

    6.Sort piece driven top feed roller unit for greater feeding control around the right side spindle

    7.A group of side pressure wheels on the right side of the left spindle, adjusted the pressure flexible by pneumatic

    8.As our standard, short pieces device with pneumatic double-direction (press and raise), you can make the workpiece feeding or back at any time

    9.In-feed bottom helical roller is more suitable for large deformation and high moisture of the wood to feed

    10.Multi-group bottom driving roller to improve the feed effect

    11.Pneumatic pressure loaded to top feed rollers separated adjustable, for easy of feeding stock with variation in thickness

    12.Adjustable out-feed side pressure plate can meet the different thickness of material output steadily

    13.Manual bed lubrication to reduce friction and improve feeding difficult timbers

    14.Adopting electric component from international class with steady quality

    15.Sealed safety enclose to reduce noise levels, improve extraction and operator safety

    four side moulder

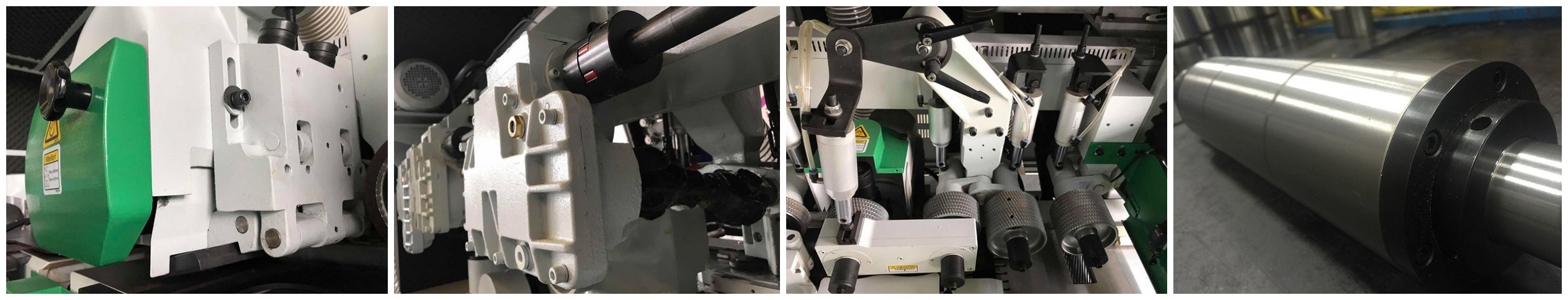

    model detail-1_

    Parameter

    Model No.

    M623

    Working width 20-230(mm) Basic motor power first bottom spindle 5.5kw/7.5HP
    Working Thickness 8-160(mm)



    first right side spindle 5.5kw/7.5HP
    Numbers of spindles 6



    first left side spindle 5.5kw/7.5HP
    Spindles speed 6000r/min



    first top spindle 7.5kw/10HP
    Cutting circle first bottom spindle Φ110-Φ145



    second top spindle 5.5kw/7.5HP



    first right side spindle Φ110-Φ200



    second bottom spindle 7.5kw/10HP



    first left side spindle Φ110-Φ200



    feed 5.5kw/7.5HP



    first top spindle Φ110-Φ200



    feed beam rise & fall 0.75kw/1HP



    second top spindle Φ110-Φ200 Total motor power 43.25kw/58.5HP



    second bottom spindle Φ110-Φ200 Feed speed 6–30
    Spindle diameter Φ40 Dust outlet diameter Φ150
    Weight 4600kg Machine Overall size 4660x1720x1730(mm)
