Flaw piece cutting machine

Short Description:

Appliction The flaw piece saw can lower your cost , which helps on material saved and high efficient . like metasequoia, pine, mongolica, chestnut wood, cypress wood,and all kinds of hardwood Model data Model No. MJ-200 MJ-260 Max. working width 100mm 100mm Min. working height 40mm 40mm Max. working height 200mm 260mm Min. working length 600mm 800mm Feeding power 0.37kw 0.75kw Main spindle power 11kw 15kw Total power 11.37kw 15.75kw Feeding speed 0-12m/min 0-12m/min ...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Appliction

    The flaw piece saw can lower your cost , which helps on material saved and high efficient .

    like metasequoia, pine, mongolica, chestnut wood, cypress wood,and all kinds of hardwood

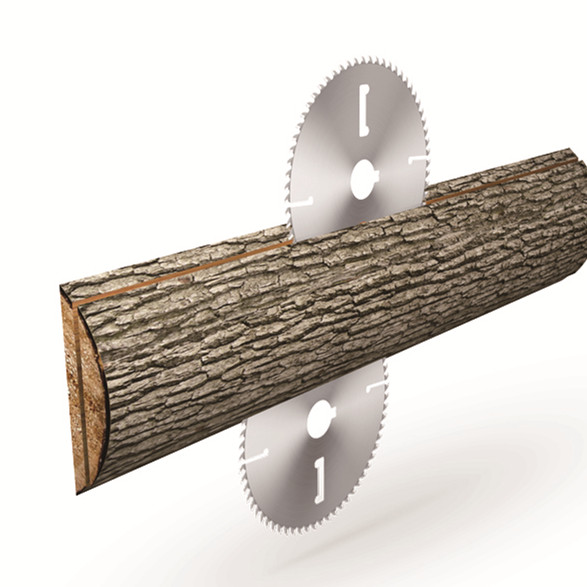

    flaw piece saw application

    Model data

    Model No. MJ-200 MJ-260
    Max. working width 100mm 100mm
    Min. working height 40mm 40mm
    Max. working height 200mm 260mm
    Min. working length 600mm 800mm
    Feeding power 0.37kw 0.75kw
    Main spindle power 11kw 15kw
    Total power 11.37kw 15.75kw
    Feeding speed 0-12m/min 0-12m/min
    Saw blade size 280*3.0*40*24T*4k 380*3.0*50*30T*4k
    Overall machine size 1250*1300*1350 1450*1300*14450
    Weight 700kg 850kg

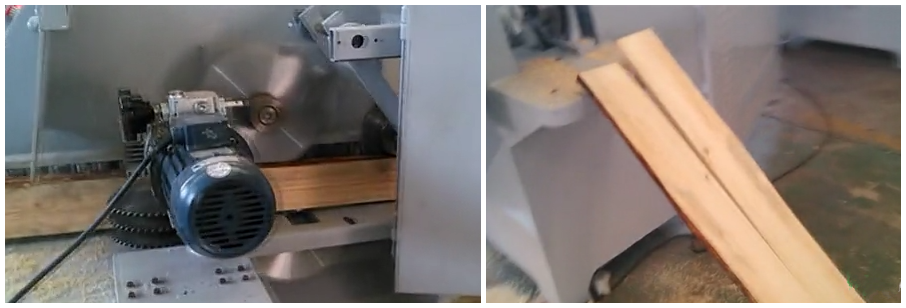

    Model working Processe

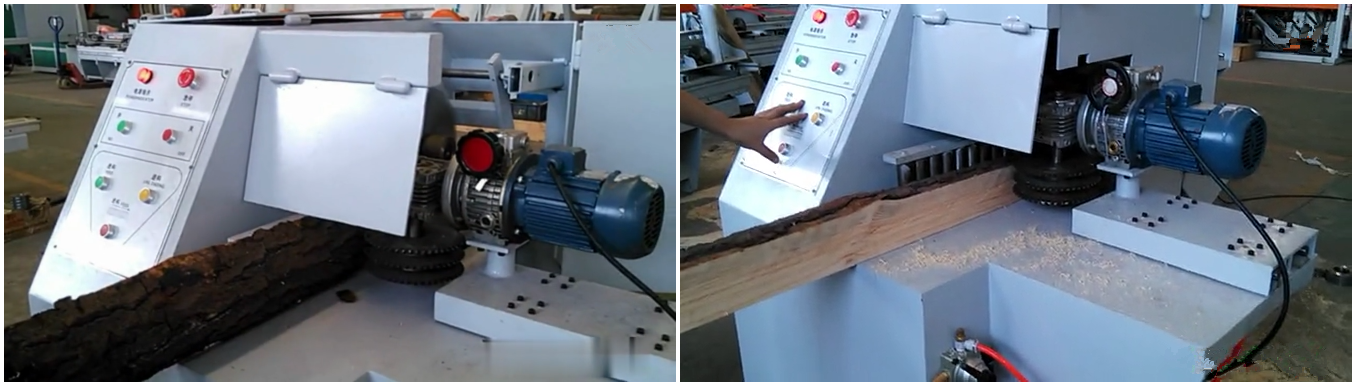

    application working

    Model Operation Video
