KC-2 Small Sander

Short Description:

Application The Mini sanding machine mainly apply for profiled milling, polishing, fine sanding of special-curved or standard blank and lacquer work pieces,like laminated lumber,chipboard,composite board, particle board,solid wood floor,panel furniture,bamboo floor,wood door and window ,cabinet,arts and crafts, WPC, and plank stuff for furniture etc.   Model Feature 1. Safety Protection : Schneider appliances can assure the machine with good performance under safety working voltage 2. Heavy-...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Application

    The Mini sanding machine mainly apply for profiled milling, polishing, fine sanding of special-curved or standard blank and lacquer work pieces,like laminated lumber,chipboard,composite board, particle board,solid wood floor,panel furniture,bamboo floor,wood door and window ,cabinet,arts and crafts, WPC, and plank stuff for furniture etc.

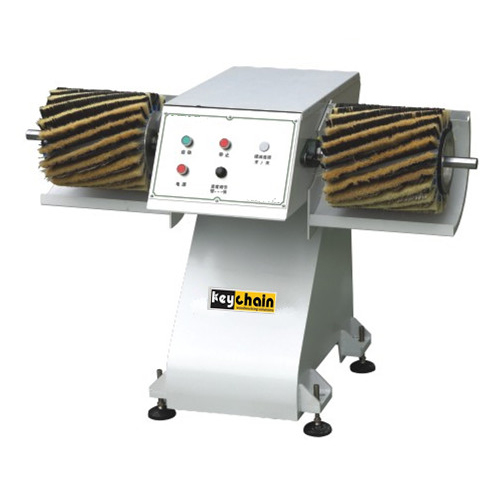

    KC-2 small sanding machine



    Model Feature

    1. Safety Protection : Schneider appliances can assure the machine with good performance under safety working voltage

    2. Heavy-duty Frame : Cast steel girder , base and front plate to strengthen the stability of machine , and improve sanding performance

    3. Frequency converter control : Schneider Electrical Frequency converter controls rotational speed as well as abrasive belt feeding , to ensure working perfectly and effectively

    4. Flexibility : Sanding belt and compound mode with different sanding discs and rollers are optional according to different work pieces

    5. Easy replaced brush : The brush is made of special sisal and abrasive sheet, easy to be replaced separately to lower cost



    Sanding Material

    –Sisal  made of hard fiber .with anti-static and strong wear resistance

    –POM gear ,made of engineering plastic with better rigidity, heat-resistance, distortion-free

    sanding material-1 QQ图片20170623161541



    Parameter

    Model KC-2
    Max Working size 300mm
    Power 1.5KW
    Sanding Roller Speed 0-700r/min
    Roller Diameter Ø190mm
    Sanding Head Diameter Ø324mm
    Dusting Outlet Diameter Ø 125×2
    Weight 140KG
    Voltage 380V/50HZ
    Model Size  1250x760x920 mm

    Service Industry

    Providing a full range of sanding material with 20000mfactory , serving for industry of furniture, flooring, musical instrument, sound box, stainless steel , metals fittings , aluminum, leather etc.

     sanding machine application

    Why us ?

    Capacity improving by 5 times

    Only 33% of sanding space is needed

    Only 25% of sanding workers

    Only 50% sanding belt wastage

    One-stop shop to solve sanding problems
