Heavy Duty Planer Sander

Short Description:

Application Integrated planer with sander, this machine has high efficiency in the procedure of thickness fixing and precise sanding. It is suitable for sanding rough surface boards and glued boards such as jointed panel boards, block boards and so on. Our design of anti-vibration and firmness solve the problems caused by high speed planer shocking on the board. 174pcs German carbide knives divided into 6 lines are along the planer spirally, which guarantees the plane quality and efficiency. ...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Application

    Integrated planer with sander, this machine has high efficiency in the procedure of thickness fixing and precise sanding. It is suitable for sanding rough surface boards and glued boards such as jointed panel boards, block boards and so on.

    Our design of anti-vibration and firmness solve the problems caused by high speed planer shocking on the board. 174pcs German carbide knives divided into 6 lines are along the planer spirally, which guarantees the plane quality and efficiency.

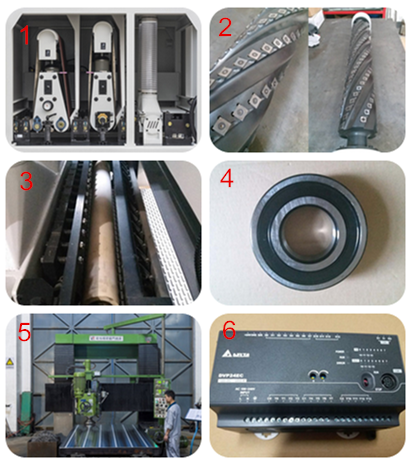

    Model details

    planer sander Model details

    1.  Rational structure design

    2. Planer roller

    —174pcs German carbide knives.

    —6 lines along the axial planer spirally

    3. Combination pf segmented press board and single press roller

    —Stop the board kickback

    4. Bearing
    —SKF bearing
    —Higher precision
    —Easy maintenance

    5. Conveyor table surface
    —Mirror finishing
    —Flatness within 0.05mm
    —Heat treatment by high temperature

    6. PLC
    —-Brand DELTA
    —-Widely used in all electric controller

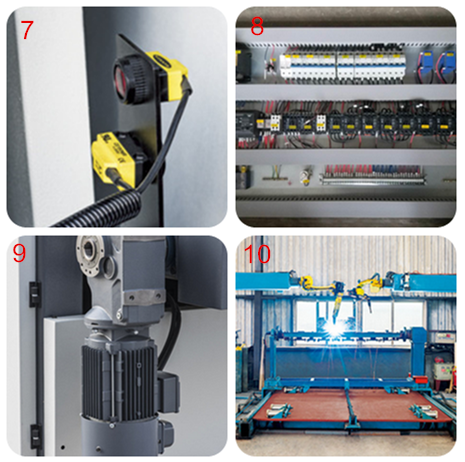

     planer sander model details-2

    7. Photo eye
    —BANNER imported from American

    —Super penetrability

    8. Electric components

    —-TECO brand from Taiwan

    —-Quality guarantee

    9. Gearbox
    —High quality gearbox with inverter motor

    10. Mechanical welding

    —Automatic welding by mechanical hand

    —Heat treatment

    —Thick Rectangular steel pipe



    Internal Display

    wood planer sander

    Model Features

    1. Suitable for sanding rough surface boards and glued boards such as jointed panel boards, block boards and so on.

    2. Carbide knife+stell roller+combination working unit work together to sand and plane in a high efficiency.

    3.The planer head assembles 174pcs German carbide knives,which spiral 6 lines along the planer head.The carbide knife with small spiral angle and arc shape blade ensure the quality and efficiency.

    4. The combination of double press rollers and three segmented press board ensures stability and safety during the plane. Front anti-kickback fingers stop board back immediately.

    5. Rollers are tested by dynamic balance machine, which can improve precision and avoid S-shaped grain.

    6. Conveyor bed is processed by mirror finishing, leading to a high flatness. The material remains stable and high precision after heat treatment.

    7.Sander frame adopts high quality steel, which keeps stable and no deformation by heat treatment. It reduces vibration when running and ensures the sanding precision.



    Parameter

    Model No.: BSG1000K-R-RP Planer sanding machine

    1) Processed data Working width: 50-1000mm Working thickness:10-150mm Min.working length: 440mm
    2) Sanding roller diameter  Planer rollerφ190mm First roller φ180mm
    3) Running speed Conveyor belt: 0-19m/min(inverter) First roller: 21m/s Second roller: 17m/s
      Planer roller 27.5m/s
    4) Size of  belt Sanding belt: 1030x2200mm Conveyor belt: 1000x4640mm
    5) Motor power Total motor power: 51.62kw
      First belt motor: 15kw Second belt motor: 11kw Planer roller:22kw
      Feeding motor: 3kw Lifting motor: 0.37kw Brush motor: 0.25kw
    6) Size Overall size: 2723*1653*2052mm
    7) Weight About 3860kg
    8) Others Working pressure: 0.4-0.8Mpa Compressed air consumption: 1.5m³/min Average speed of sucked air
    25-30m/s

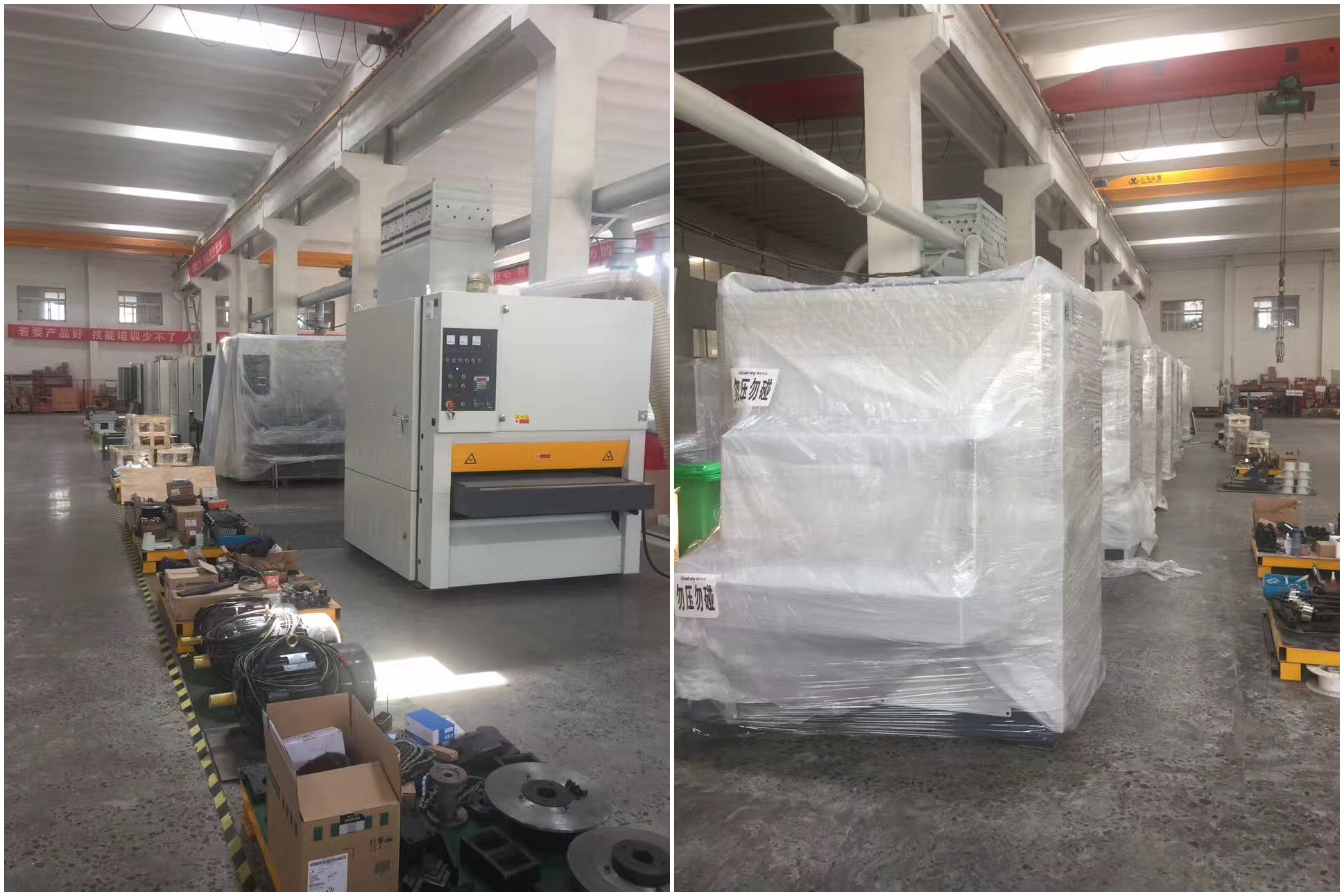

    Package
