Four side Planer/Moulder

Short Description:

Application Our four side planer with different working width 120mm, 160mm, 200mm, 230mm , and with different spindles ( four, five, six ) for different workpiece demand . Which is a good professional solutions for wooden floors, door frames, stairs handrail, skirting line, various wooden lines and the big cutting quantity processing Model Features 1. The spindle uses the independent operation, shearing force is strong 2. Adopting frequency control, feeding speed reach to 5-28m/min 3. The sp...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Application

    Our four side planer with different working width 120mm, 160mm, 200mm, 230mm , and with different spindles ( four, five, six ) for different workpiece demand . Which is a good professional solutions for wooden floors, door frames, stairs handrail, skirting line, various wooden lines and the big cutting quantity processing

    four side planer application

    Model Features

    1. The spindle uses the independent operation, shearing force is strong

    2. Adopting frequency control, feeding speed reach to 5-28m/min

    3. The spindle can be up and down m and move around to facilitate the various shapes processing of wood line

    4.The plating workbench is concentrated in the front , easy to operate

    5. Equipped with a short feeding device, it is effectively to improve the utilization of short-material processing

    6.Workstations equipped with under active rollers to ensure smooth feeding

    7.Fully enclosed protective cover to avoid sawdust flying and noise isolation , it plays a role in security protection

    8,Pneumatic pressure feed wheel which can divide adjustment pressure, it is advantageous in the adjustment pressure of different thickness wood to ensure smooth feeding

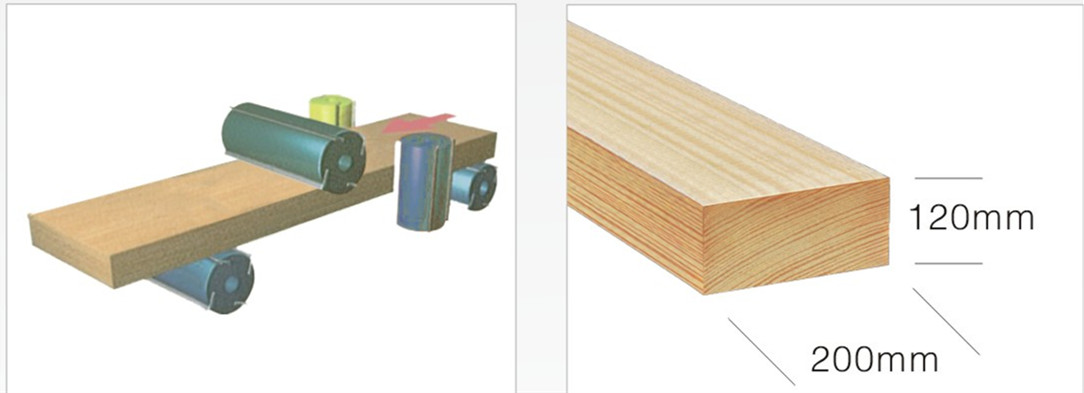

    M520 working way

    Model Details

    four side planer details

    Parameter

    Technical Data  M620 M520 M420
    Machine Parameter
    Working Thickness: 8-120mm 8-120mm 8-120mm
    Working Width: 25-200mm 25-200mm 25-200mm
    Operating Platform length: 1800mm 1800mm 1800mm
    Feed Speed: 5-38m/min 5-38m/min 5-38m/min
    Spindle Diameter: ø 40mm ø 40mm ø 40mm
    Spindle Speed: 6000r/min 6000r/min 6000r/min
    Gas Source Pressure: 0.6MPa 0.6MPa 0.6MPa
    Motor Power
    The first Bottom Spindle: 5.5kw/10HP 5.5kw/10HP 5.5kw/10HP
    The first Top Spindle: 7.5kw/15HP 7.5kw/15HP 7.5kw/15HP
    Right Side Spindle: 5.5kw/10HP 5.5kw/10HP 5.5kw/10HP
    Left Side Spindle: 5.5kw/10HP 5.5kw/10HP 5.5kw/10HP
    Top Spindle go up and down:  \  \  \
    Left Side Spindle go in and out:  \  \  \
    Second Top Spindle: 5.5kw/7.5HP  \  \
    Second Bottom Spindle: 5.5kw/7.5HP 5.5kw/7.5HP 5.5kw/7.5HP
    Universal Spindle \ \ \
    Feed Beam Rise& Fall: 0.75kw/1HP 0.75kw/1HP 0.75kw/1HP
    Feeding: 4kw/5.5HP 4kw/5.5HP 4kw/5.5HP
    Total Motor Power: 39.75kw 34.25kw 28.75kw
    Hydraulic Feeding Motor \ \ \
    Knife Diameter
    Right Side Spindle: ø 125-ø 180mm ø 125-ø 180mm ø 125-ø 180mm
    Left Side Spindle: ø 125-ø 180mm ø 125-ø 180mm ø 125-ø 180mm
    The first Bottom Spindle: ø 125 ø 125 ø 125
    The first Top Spindle: ø 125-ø 180mm ø 125-ø 180mm ø 125-ø 180mm
    The Second Top Spindle: ø 125-ø 180mm ø 125-ø 180mm ø 125-ø 180mm
    The Second Bottom Spindle: ø 125-ø 180mm ø 125-ø 180mm ø 125-ø 180mm
    Universal Spindle  \  \  \
    Other Diameter
    Feed Wheel Diameter: ø 140mm ø 140mm ø 140mm
    Dust Absorption tube Diameter: ø 140mm ø 140mm ø 140mm
    Oversea Machine Dimensions(mm) 3920*1600*1700 3370*1600*1700 3370*1600*1700
