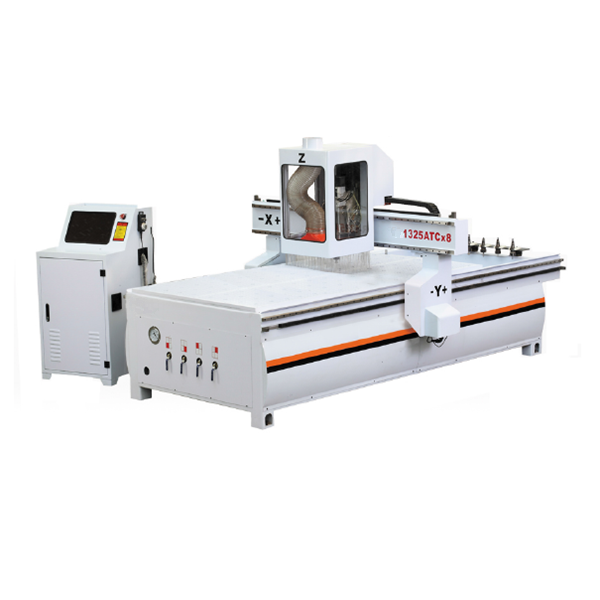

CNC Router 1325ATC

Short Description:

Application 1325ATC 3 Axis Cnc Router ATC tools on MDF/PVC/Plywood  Applications of 1325ATC  woodworking easy operation system wood cnc router for door cabinet cutting and engraving Woodworking Industry: Three-dimensional wave board processing, cabinet doors, wooden craft, non-paintdoors, screens, furniture, caraft window processing products, fan-shaped sculpture milling. Advertisement Industry: Advertising signs, PVC boards, double colour boards, logo production, acrylic cutting, suck plas...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Application

    1325ATC 3 Axis Cnc Router ATC tools on MDF/PVC/Plywood

    Applications of 1325ATC  woodworking easy operation system wood cnc router for door cabinet cutting and engraving

    Woodworking Industry: Three-dimensional wave board processing, cabinet doors, wooden craft, non-paintdoors, screens, furniture, caraft window processing products, fan-shaped sculpture milling.

    Advertisement Industry: Advertising signs, PVC boards, double colour boards, logo production, acrylic cutting, suck plastic molding, large word cutting, scutcheon production, crystal plates, LED / neon groove, aperture cutting, light box mould production.

    CNC router Application

    Model Details

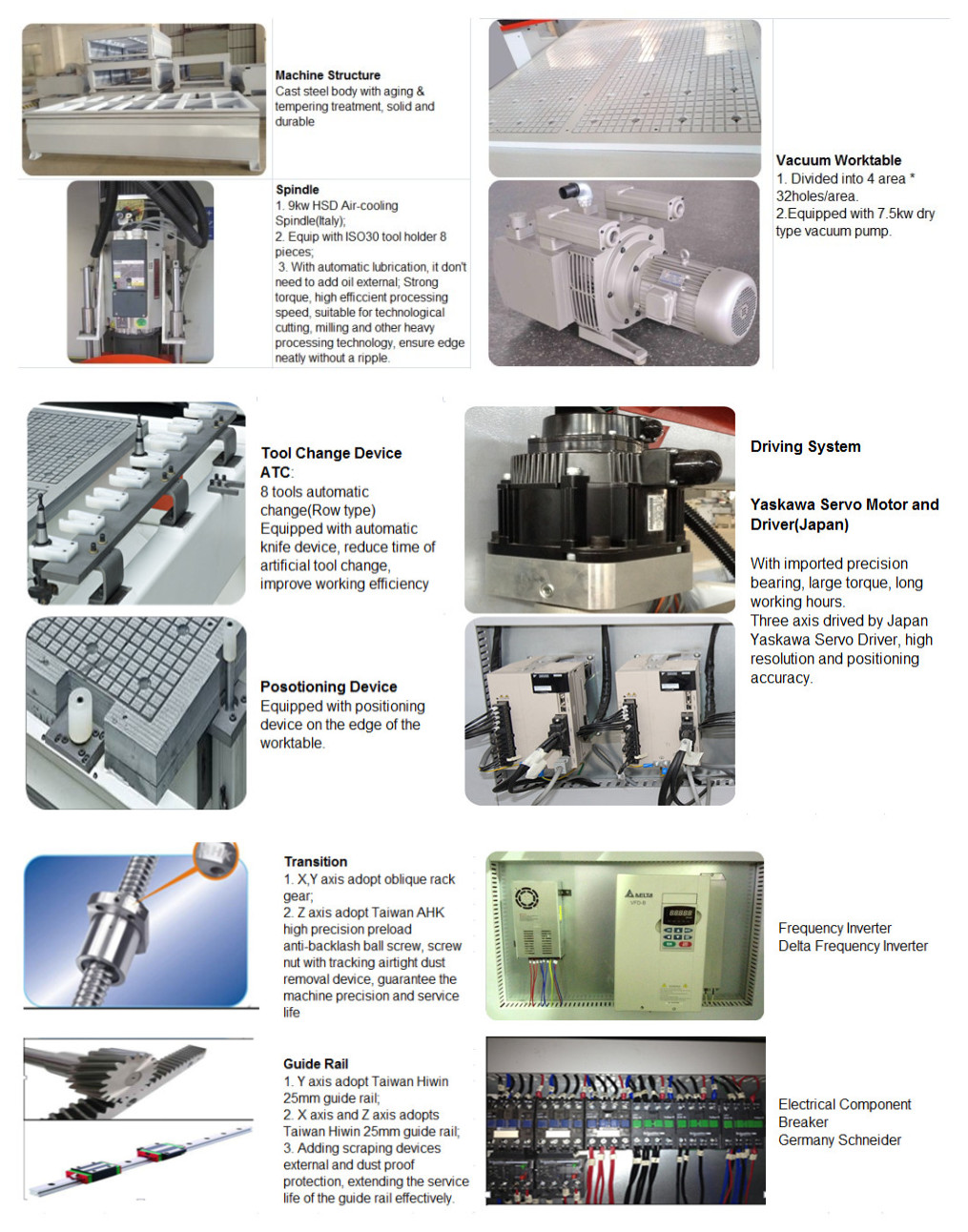

    CNC router model detail

    CNC cutting machine detail

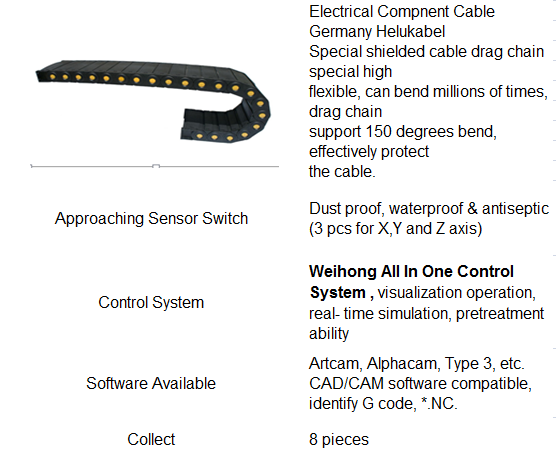

    Model Technical Data

    Stroke X , Y, Z Working Area 1300*3500*200mm
    Machine Precision Processing Precision ±0.1mm
    Repeat positioning accuracy ±0.03mm
    Machine Structure Worktable  Vaccum Worktable
    X,Y,Z Transmission X,Y Axis:  Oblique Rack Gear
    Z Axis: Taiwan AHK Ball Screw
    Speed Max. Traverse Speed 50m/min
    Max. Cutting Speed 35m/min
    Spindle Motor Spindle Power 9kw HSD Italy Spindle
    Spindle Speed 24000rpm
    Diameter of Cutter Φ3.175-Φ16mm
    Working Voltage AC380V/50Hz
    Operation System WeiHong All In One Control System
    Operation Instruction G-code, *.NC
    Overall Size 2100x3500x2000mm
    Net Weight 1800kg

    Workshop production line

    Raw materail — Cutting  Welding — Painting — Drilling — Assembling — Testing — Packing

    CNC router production line

    Typical Case

    CNC router case

    keychain certificate

    CNC router 1325ATC operation video
