High Frequency wood board press (crawler chain)

Short Description:

Our HF wood board jointing machine ( vertical lifting ) , which  is the updated version of high frequency board jointing machine, with upper plate adopts vertical lifting and installs the synchronous system, so as to achieving higher planeness, saving 0.3mm plane thickness . Application  It mainly apply to laminated wood, particle board, door panel jointing, and solid wood, door pocket, door line banding, or other wooden block gluing etc. Model  Features  1. High Timber Outturn : 5%-10% mo...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Our HF wood board jointing machine ( vertical lifting ) , which  is the updated version of high frequency board jointing machine, with upper plate adopts vertical lifting and installs the synchronous system, so as to achieving higher planeness, saving 0.3mm plane thickness .

    HF board jointing application

    Application

    It mainly apply to laminated wood, particle board, door panel jointing, and solid wood, door pocket, door line banding, or other wooden block gluing etc.

    HF  board jointing application

    Model  Features

    1. High Timber Outturn : 5%-10% more on average compared to the general clamp carrier

    2. High Efficiency : 1-3 mins to finish one board , 15-20 seconds shorter than horizontal board joining , efficiency improved 5%-7%

    3. Energy Saving : 15-30kw/h power consumption for 1cbm board jointing

    4. Low Labor Cost : feeding & discharging device of belt-conveyer , adding palletizing and gluing system for option to get more efficient as well

    5. Heavy Frame :  Using large-scale machine tool to ensure its verticality

    6. Easy Operation: Touch screen HML, with a built-in operation instruction which including installation, operation, repair, maintenance etc.

    7. Safety : Adding high sensitive spark protection circuit and make separated cabinet for HF parts

    8. Good components : assorting Taiwan pneumatic tools mostly

    9. The thinnest board of jointing is 6mm at least

    Model Details

    HF model details

    HF press  model details

    Technique Data

    Type KCPB-50PZ KCPB- 61PZ KCPB-70PZ KCPB-120PZ
    Workbench size (mm) 2500×1300 2500×1300 3000×1300 6000×1300
    Jointing thickness (mm) 6-50 6-80 8-80 8-80
    Vertical pressure (T) 28 28 28 42
    Horizontal pressure (T) 22 33 42 78
    Overall size (mm) 8700(L)×4400(W)×2300(H) 8700(L)×4400(W)×2300(H) 10200(L)x4400(W)x2300(H) 18200(L)x5200(W)x2400(H)
    Weight (T) 5.5 6.5 7.5 13
    Feeding Auto Auto Auto Auto

    WorkShop

    weldinding workshop

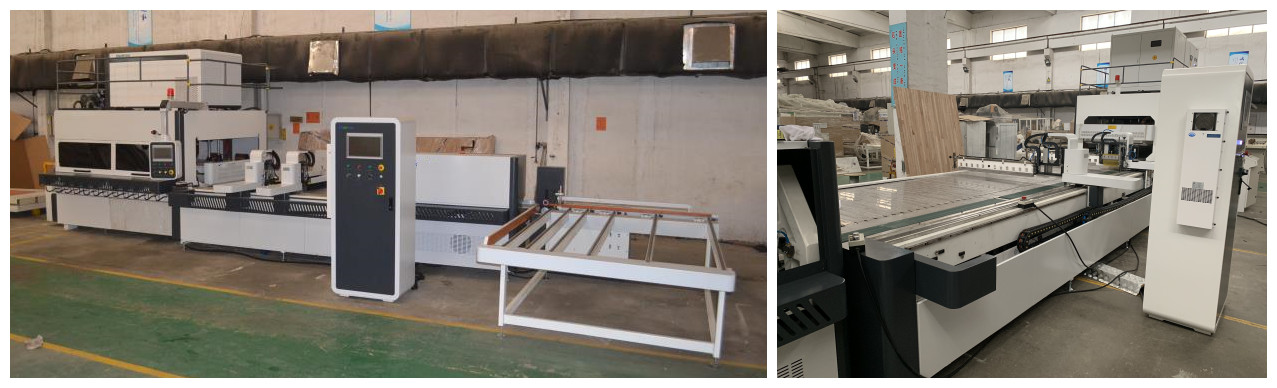

    Case for referance

    HF board jointing case

    high frequency edge glue machine

    HF wood board press case

    Optional device

    —– Automatic palletizing system

    auto palletizing system

    —- Chain type Glue Applicator

    Glue applicator

    Which is suitable for gluing single surface during glue-laminated board production , the chain conveyor system adopts zigzag framework ,which greatly assure the gluing quality .

    Model No. TJ-400-L
    Max gluing width( mm) 400
    Dia. of gluing roller (mm) Φ130
    Gluing roller quantity  1
    Gluing roller speed (m/min) 10
    Feeding motor power(KW) 0.75
    Gluing motor power (KW) 0.4
    Machine overall size( mm) 920(W)*3600(L)*1320(H)
    Machine weight ( KG) 700

    Series Models

    Double workbench HF board jointing machine  & Crewle stype HF board jointing macine

    series models

    Full automatic HF board jointing machine production line ( including gluing system )

    full Automatic HF press line
