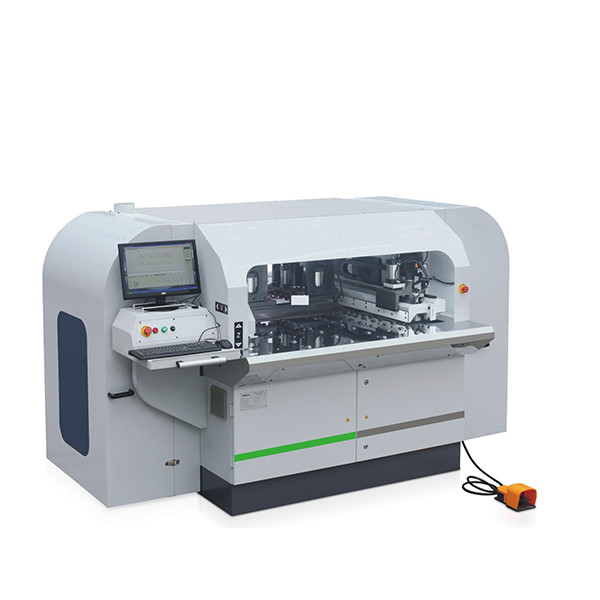

CNC drilling machine

Short Description:

Application CNC boring machine applicable for drilling 5 sides of wood panel, four sides holes boring and bottom face boring holes, set with cnc program , for industry of cupboard doors,furniture industry, decorative material,cabinet door,computer table, cabinets and panels,plastic fabrication,model,art crafts,musical instrument, plate.with computer control and automatic feeding & drilling, which is easy working , high efficient and convient for operation. Model Parameter Full au...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Application

    CNC boring machine applicable for drilling 5 sides of wood panel, four sides holes boring and bottom face boring holes,

    set with cnc program , for industry of cupboard doors,furniture industry, decorative material,cabinet door,computer

    table, cabinets and panels,plastic fabrication,model,art crafts,musical instrument, plate.with computer control and

    automatic feeding & drilling, which is easy working , high efficient and convient for operation.

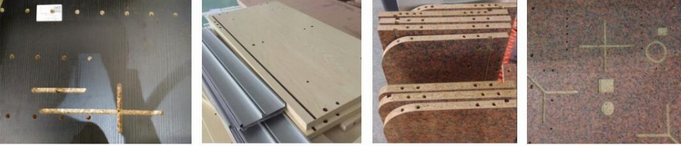

    CNC  boring machine application

    Model Parameter

    Full automatic CNC drilling machine   KC28  KC18
    Maximum positioning speed
    X axis velocity 60m/min 60m/min
    Y axis velocity 60m/min 60m/min
    Z axis velocity 15m/min 15m/min
    U axis velocity 60m/min 60m/min
    Drilling assembly
    Vertical drilling   7 (X axis) +6 (Y axis) +1 (hinge drill) 7 (X axis) +6 (Y axis) +1 (hinge drill)
    Horizontal drilling 2 (upper) +2 (lower) +1 (left) +1 (right) 2 (upper) +2 (lower) +1 (left) +1 (right)
    Drilling group motor power 2.0KW,4000prm 2.0KW,4000prm
    Engrave milling spindle
    This machine is mainly limited to the power function of drilling, engraving and milling reasons, only a simple milling function added
    Spindle form Er32
    Commandhpgl 6mm, 8mm (standard)
    Spindle motor power 2.2KW
    Spindle speed 18000prm
    Processing size range
    Minimum width of plate 50mm 50mm
    Maximum width of plate 1000mm 1000mm
    Minimum plate length 250mm 250mm
    Maximum plate thickness 50mm 50mm
    Other parameter
    working voltage 380V,50HZ 380V,50HZ
    Working pressure 0.6-0.8Mpa 0.6-0.8Mpa

    Model Details

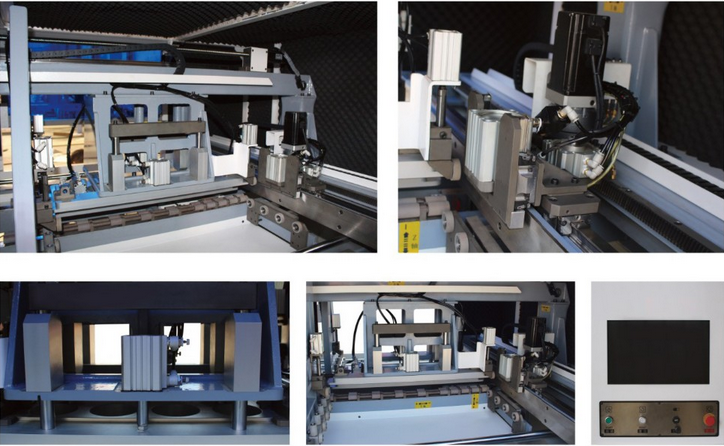

    CNC boring machine details

    Series Models : Muliti head boring machine — Six Row , Four Row, Three Row

    series models

    Two Row

    two rows boring machine

    Two Row/head Drilling macine KC221
    Max. distance between the two holes of the horizontal drilling 640mm
    Max. thickness of workpiece 78mm
    Horizontal max drilling depth 40mm
    Vertical max drilling depth 70mm
    Shaft rotation speed 2800rpm(50HZ)
    Vertical drilling power 1.5KW
    Horizontal drill 1.5KW
    Working pressure 0.6-0.8MPa
    Mechanical Dimensions 1200 x 1000 x 1550mm
    Packing size 1300 x 1100 x 1650mm
