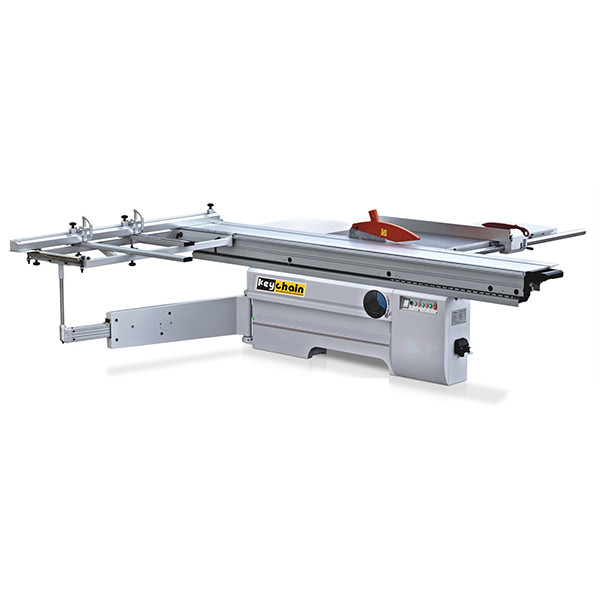

Precision Sliding table saw KC-320D

Short Description:

Application This sliding table saw for processing a variety of MDF, particleboards, wood-based panels, ABS boards, PVC boards, organic glass plates and solid wood and other wood similar to the hardness of the plate Optional Device Parameter Model NO.  KC320D KC320M KC320C Sliding table length 3200mm 3200mm 3200mm Sliding table width 430mm 378mm 378mm Maximum height of saw blade 90mm 90mm 90mm Maximum diameter of main saw blade 350mm 350mm 350mm Slotted saw blade diameter 1...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Application

    This sliding table saw for processing a variety of MDF, particleboards, wood-based panels, ABS boards, PVC boards, organic glass plates and solid wood and other wood similar to the hardness of the plate

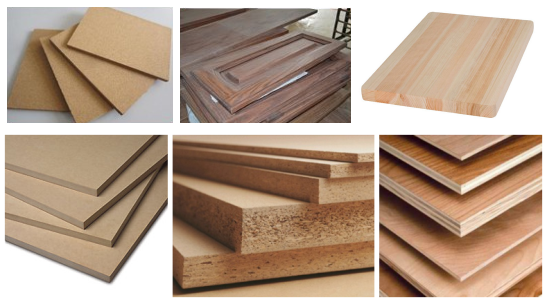

    sliding table saw application

    Optional Device

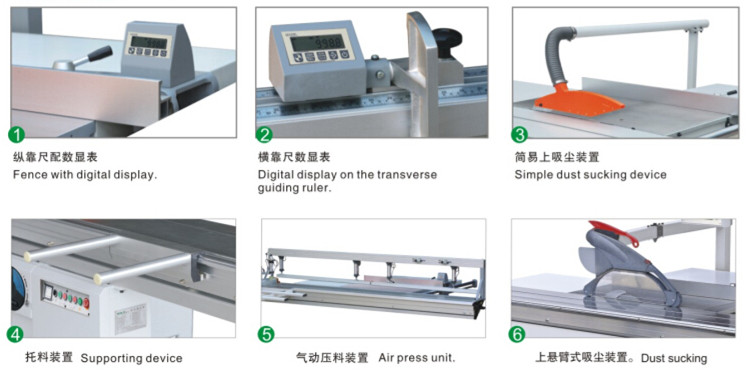

    sliding table saw optional device

    Parameter

    Model NO.  KC320D KC320M KC320C
    Sliding table length 3200mm 3200mm 3200mm
    Sliding table width 430mm 378mm 378mm
    Maximum height of saw blade 90mm 90mm 90mm
    Maximum diameter of main saw blade 350mm 350mm 350mm
    Slotted saw blade diameter 120mm 120mm 120mm
    Tilting saw blade 45° 45° 90°
    Spindle speed 4200r/minutes 5600r/minute 4200r/minute
    Groove saw shaft speed 8500r/minutes 8500r/minute 8500r/minute
    Main saw motor power 5.5KW 5.5KW 5.5kw
    Saw motor power 0.75KW 0.75KW 0.75kw

    Model Details

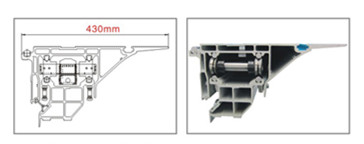

    sliding table saw guid rail

    The guide rail using high chrome steel , which improve working precision and extends service life. Sliding table have super-wide working table, making board-suporting more stable, with multipoint locking , improving work effeciency greatly .

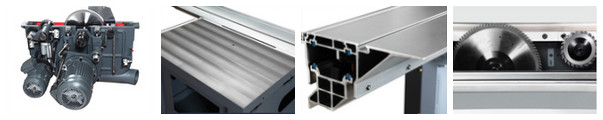

    sliding table saw model details



    Main Features

    1. All our sliding table saw use heavy duty round tracks, it guarantees the table shape not changed after long time work.
    2. Special own technology, guaranteed the cutting angle precision.
    3. All our products new and high quality metal, our saw weight is much more than other same model. It’s important to avoid vibration for processing.
    4. Fixed 380V motor for both main saw and scoring saw, no need voltage change, motor is not easy broken.
    5. Our electric display for the tilt degrees is 100% accurate, which can’t be achived by most China panel saw manufactures.
    6. Our newest model cutting tolerance is less than 0.05mm, other factories can guarantee max. 0.12mm tolerance range.
    7. From 2.2m to 3.8m long, from 375mm to 435mm width, with and without protection cover, both long and short spindle, we manufacture wide range and quality panel saws
