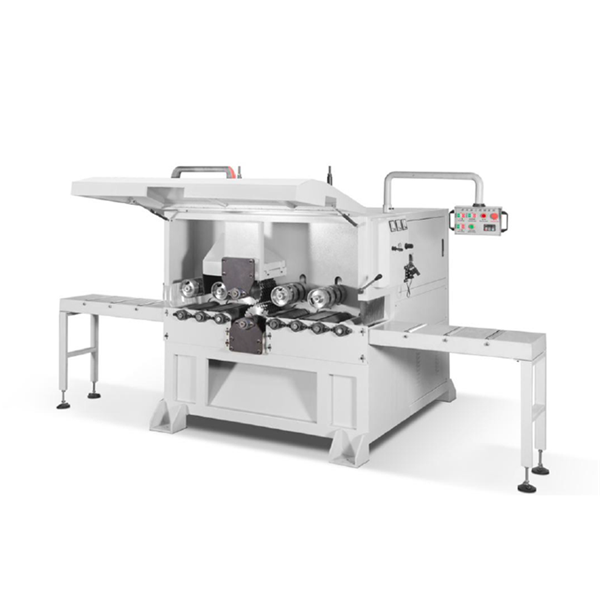

Newly Plank multi rip saw (Square Wood )

Short Description:

Application ( for square wood ) 1.Woodworking industry, Solid wood processing factory, timber log sawmill line. such as board making, laminated wood,  floor, packing case and pallet, as well as building materials  2. Factories would like lower labors ,improve efficiency, achieve automatic working line  3.Who want to replace of the traditional band saw machine. Model Features  1.This product uses the Steel wheel feeding (with power), stable  2.Pneumatic sprocket pressure material, reliable ...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Application ( for square wood )

    1.Woodworking industry, Solid wood processing factory, timber log sawmill line. such as board making, laminated wood,  floor, packing case and pallet, as well as building materials

    2. Factories would like lower labors ,improve efficiency, achieve automatic working line

    3.Who want to replace of the traditional band saw machine.

    plank cutting way

    Model Features

     1.This product uses the Steel wheel feeding (with power), stable

     2.Pneumatic sprocket pressure material, reliable performance

     3.Roller device, stable feeding

     4.Infrared calibration

     5.Patent of axis core water spray technology

     6.Reduce the worker, Save material, Cost-effective

     7.The output plate with smooth surface, no need sanding

     8. 1.5 times efficiency improve than normal band saw machine

    plank multi rip saw data

    SPECIFICATION MJ-PMR-3025
    Max. working width 300mm
    Working height 110-250mm
    Max Feeding height 260mm
    Min. working length 800mm
    Up spindle motor power 45KW
    Down spindle motor power 45KW
    Feeding motor power 2.2KW
    Total power 92.2KW
    Feeding speed 6-10.5m/min
    Saw blade size 380*3.2*60*30T+6K
    Total weight 2000kg



    feature

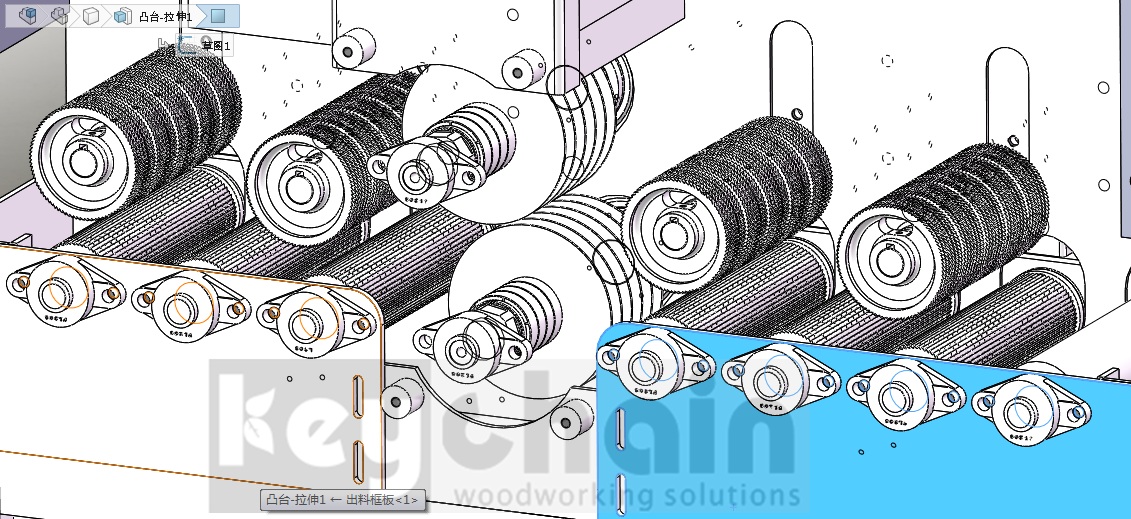

    Model Details

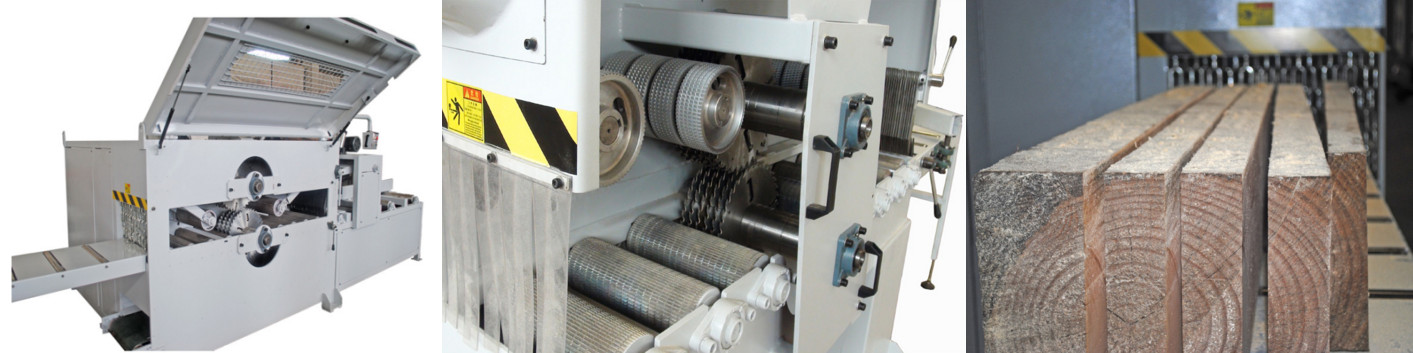

    plank rip saw details



    Operation Video
