High Frequency Wooden Frame Assembling Machine

Short Description:

Our Patent Design High Frequency Wooden Frame Assembling Machine , which is the most advanced wooden frame assembling machine in the world. Application  The machine is suitable for fast assembling of all kinds of wooden frame, with or without tenon, such as closet door, cabinet door, furniture frame assembly, drawer, mirror frame, and picture frame, which adopts high frequency power heating, four-angle pressurized mode. Benefit  1. High speed : glue is solidified in 2-20 seconds, and it can...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Our Patent Design

    High Frequency Wooden Frame Assembling Machine , which is the most advanced wooden frame assembling machine in the world.

    case--

    Application

    The machine is suitable for fast assembling of all kinds of wooden frame, with or without tenon, such as closet door, cabinet door, furniture frame assembly, drawer, mirror frame, and picture frame, which adopts high frequency power heating, four-angle pressurized mode.

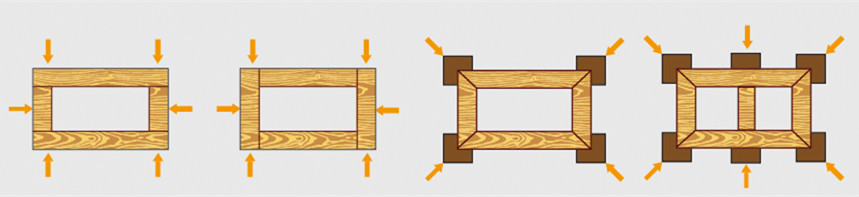

    HF wood assembling Pressure sketch

    Benefit

    1. High speed : glue is solidified in 2-20 seconds, and it can operate on the assembly line .

    2. Saving labor : it saves lots of time for loading and checking , and operate without fixtures

    3. High quality: no need to use staple gun and improved subsequent procedures , the glue can be solidified under high pressure.

    4. High precision: it adopts the ball screw and precision linear guide, and controls the machine with motor, diagonal error minimization

    5. Low cost: a frame only costs about 0.003-0.04KWh

    6. Convenience: it adopts touch screen of human-machine interface, easy change the dimension automatically , PLC automatically control, all data can display on touch screen, including pressure, current, heating time and cooling time, etc

    Referance Case

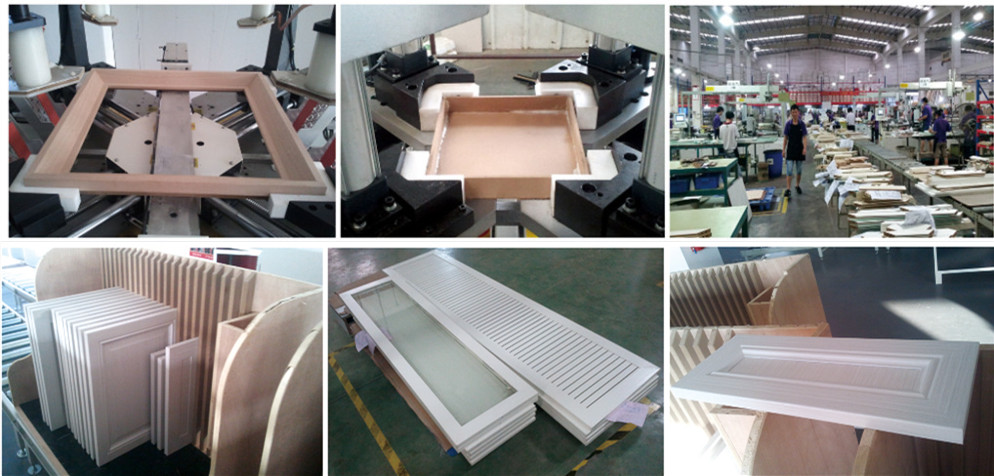

    HF wooden frame assembling samples

    Parameter

    Model No. KC-1200X800 KC-2000X800 KC-2800X800 KC-2800×1000 KC-3400X1200
    Max. working size(mm) 1200×800 2000×800 2800×800 2800×1000 3400×1200
    Min. working size(mm) 80×80 130×130 130×130 130×130 200×200
    Pressing way precision lead screw
    Overall size(LxWxH)(mm) 2000x1180x1750 2760x1180x1750 3560x1180x1750 3560x1380x1750 4160x1580x1750
    Weight 800kg 1500kg 2000kg 2200kg 2500kg

    Model Details

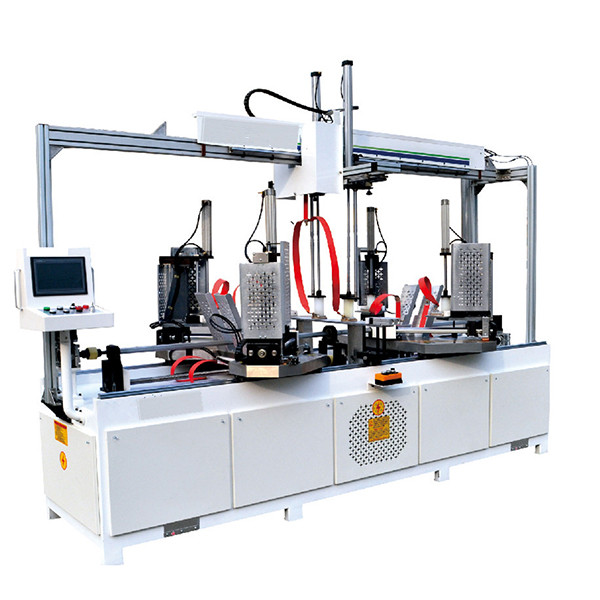

    HF wooden frame assembling machine

    Workshop

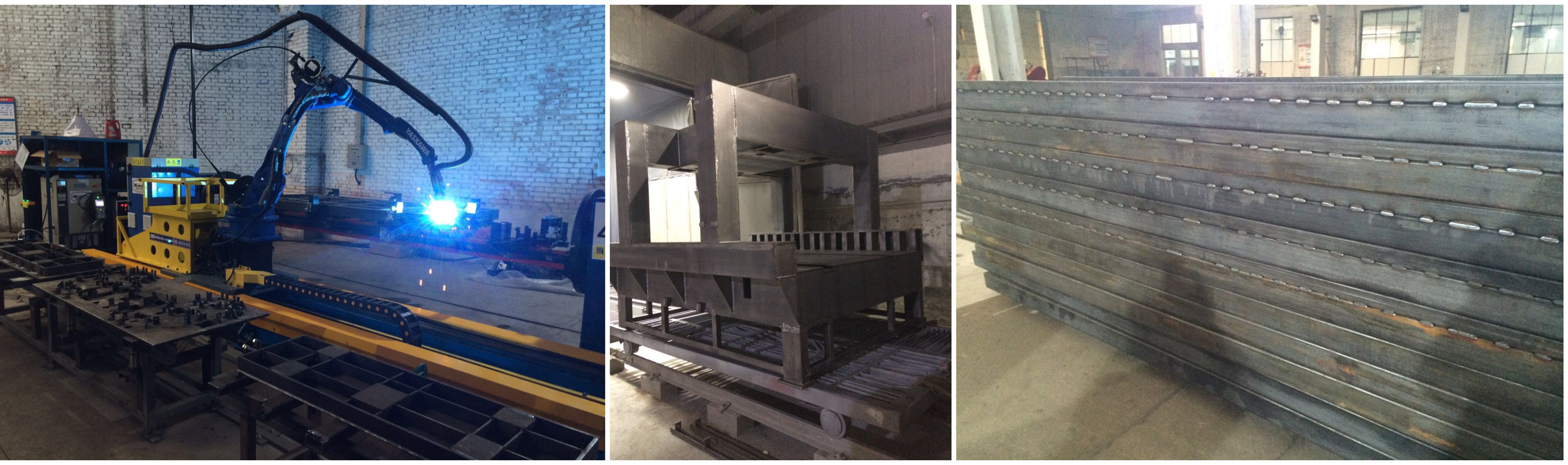

    welding workshop

    Operation Video
