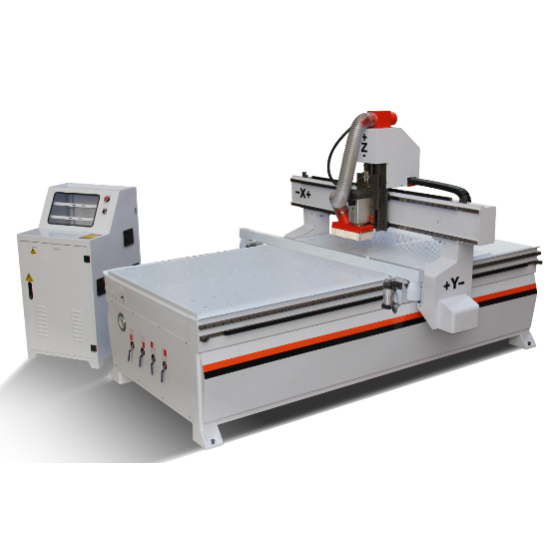

CNC Cutting machine 1325

Short Description:

Application  This cnc router machine can cutting, drilling, evgraving, milling, etc. work on   kinds of boards,such as solid wood,acrylic,PVC board,shaving board,fireproof wood, plastic board or light metal etc. Woodworking industry: 3D wave boardprocessing, cabinet doors, wooden craft, non-paint doors, screens, furniture, craft window processing products. Advertisement industry: signs, pvc boards, double color board, logo production, arcylic cutting, suck plastic molding, large word cutti...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Application

    This cnc router machine can cutting, drilling, evgraving, milling, etc. work on   kinds of boards,such as solid wood,acrylic,PVC board,shaving board,fireproof wood, plastic board or light metal etc.

    Woodworking industry: 3D wave boardprocessing, cabinet doors, wooden craft, non-paint doors, screens, furniture, craft window processing products.

    Advertisement industry: signs, pvc boards, double color board, logo production, arcylic cutting, suck plastic molding, large word cutting, scutcheon production, crystal plates, led neongroove, aperturd cutting, light box mould production etc.

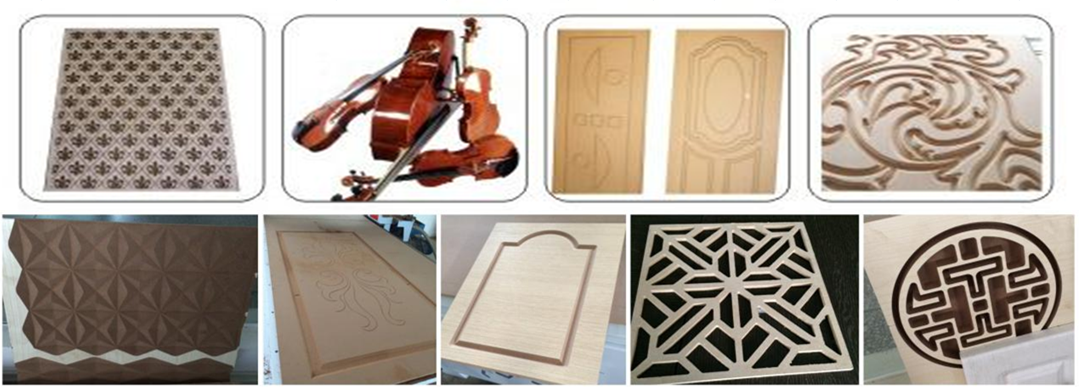

    cnc router application

    Model Parameter

    Stroke X , Y, Z Working Area 1300*2500*200mm
    Machine Precision Processing Precision ±0.1mm
    Repeat positioning accuracy ±0.03mm
    Machine Structure Worktable  Vaccum Worktable
    X,Y,Z Transmission X,Y Axis:  Oblique Rack Gear
    Z Axis: Taiwan TBI Ball Screw
    Speed Max. Traverse Speed 25m/min
    Max. Cutting Speed 15-20m/min
    Spindle Motor Spindle Power 4.5kw R-TUP spindle
    Spindle Speed 18000rpm
    Diameter of Cutter Φ3.175-Φ16mm
    Working Voltage AC380V/50Hz
    Operation System DSP  Control  Systerm
    Operation Instruction G-code, *.NC
    Overall Size 2100*3000*2000mm

    Model Details

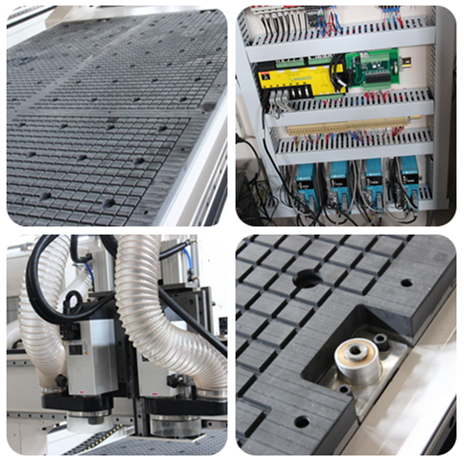

    CNC router model details

    Model Features

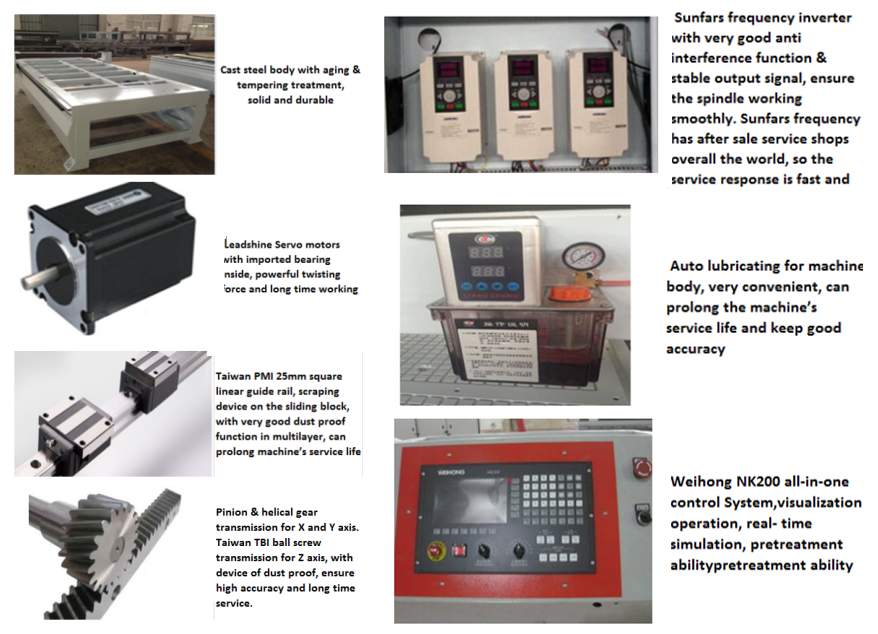

    CNC cutting machine model feature



    Packing and shippment

    CNC router packing and shippment

     Operation Video
