CNC carriage vertical band saw

Short Description:

Application This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into  slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination  with carriage,  it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprise Advantage 1. Automatic hydraulic clamp,fast and stablity; 2. Through the sprecision screw guide regulation,high prescision; 3....


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Application

    This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into  slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination  with carriage,  it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprise

    log wood sawmill

    Advantage

    1. Automatic hydraulic clamp,fast and stablity;

    2. Through the sprecision screw guide regulation,high prescision;

    3. Saw is expected to be smooth and fast;

    4. Mechanical material,rapid,accurate,and effort

    5. Carpenter carriage’s forward and reverse convertor travelling, PLC programming



    Model Details

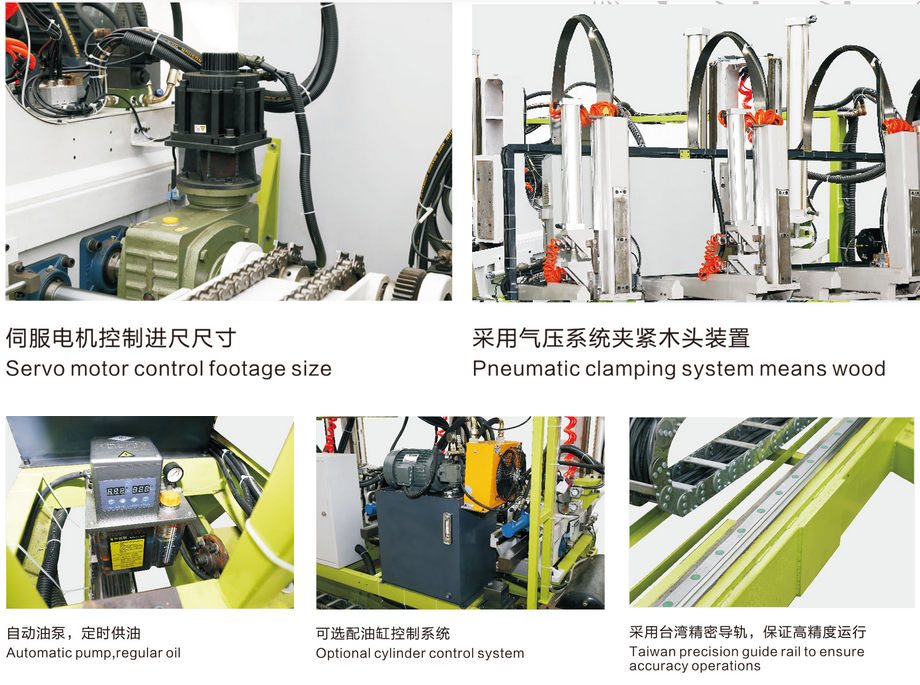

    CNC vertical band saw details

    CNC Carriage vertical band saw data

    Model NO. QMJ-50-300
    Cutting capacity ≥800-2000mm
    Min.cutting thickness 3mm
    Max.cutting dia 500mm
    Min.cutting dia 100mm
    Wheel diameter 810 mm
    Wheel width 80mm
    Wheel of blade 90mm
    length of blade 6000mm
    Feed speed (Variable) 0.5-15m/min
    Return speed 10-45m/min
    Specification of sawing plate ≥3mm (be adjustable)
    wheel drive motor 3-HP-380V~50HZ 15KW
    Packing Dimensions 4500X1500X2000mm
    Optional hydraulic cylinder system

    Series Models

    CNC carriage vertical band saw
